Test Benches for Cooktops and Ovens
The best integrated solution to get the Label of Energy Efficiency (EEL) in hobs and ovens, both electric and gas, as required by Directives 2010/30/EU and EU 65/2014, and by the standards IEC 60350 and EN 30, completely independently. The “Test Benches for Cooktops and Ovens” are equipped with 3P Labware, an advanced software platform, which makes work easier and faster.

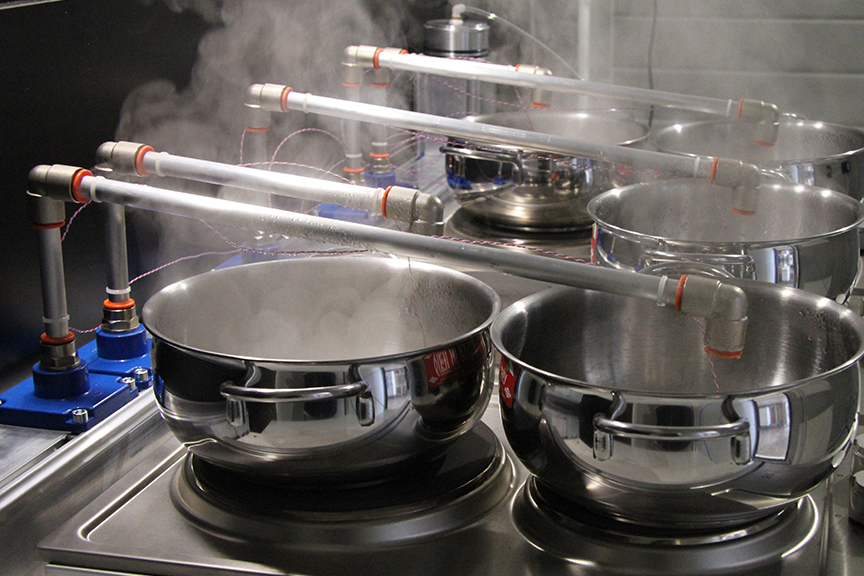

COOKTOPS
Test stations for gas cooktops suitable to performe combustion and efficiency tests, with evaluation of emissions through the analysis of CO, CO2, NOX and O2, using NDIR cells, and measurement of the inducted temperatures on the surfaces; and test stations for electric cooktops.
Technical specifications:
• Thermical Power: up to 12 kW
• CO: 0 – 1000 ppm
• CO2: 0 – 15% vol.
• O2: 0 – 25% vol.
• NOX: 0 – 1000 ppm
• Integrated software for acquisition and processing
• LAT certified sensors
Contact usTechnical specifications:
• Thermical Power: up to 12 kW
• CO: 0 – 1000 ppm
• CO2: 0 – 15% vol.
• O2: 0 – 25% vol.
• NOX: 0 – 1000 ppm
• Integrated software for acquisition and processing
• LAT certified sensors

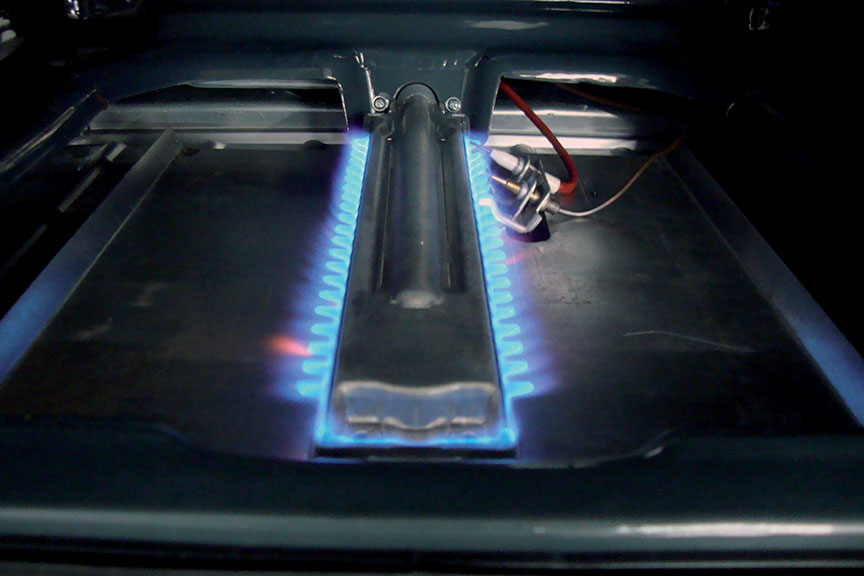

OVENS
Test stations for gas ovens suitable to performe combustion and efficiency tests, with evaluation of emissions through the analysis of CO, CO2, NOX e O2, using NDIR cells, and measurement of the inducted temperatures on the surfaces; and test stations for electric ovens.
Technical specifications:
• Thermical Power: up to 36 kW
• CO: 0 – 1000 ppm
• CO2: 0 – 15% vol.
• O2: 0 – 25% vol.
• NOX: 0 – 1000 ppm
• Integrated software for acquisition and processing
• LAT certified sensors
Contact usTechnical specifications:
• Thermical Power: up to 36 kW
• CO: 0 – 1000 ppm
• CO2: 0 – 15% vol.
• O2: 0 – 25% vol.
• NOX: 0 – 1000 ppm
• Integrated software for acquisition and processing
• LAT certified sensors
YOU MAY BE ALSO INTERESTED IN

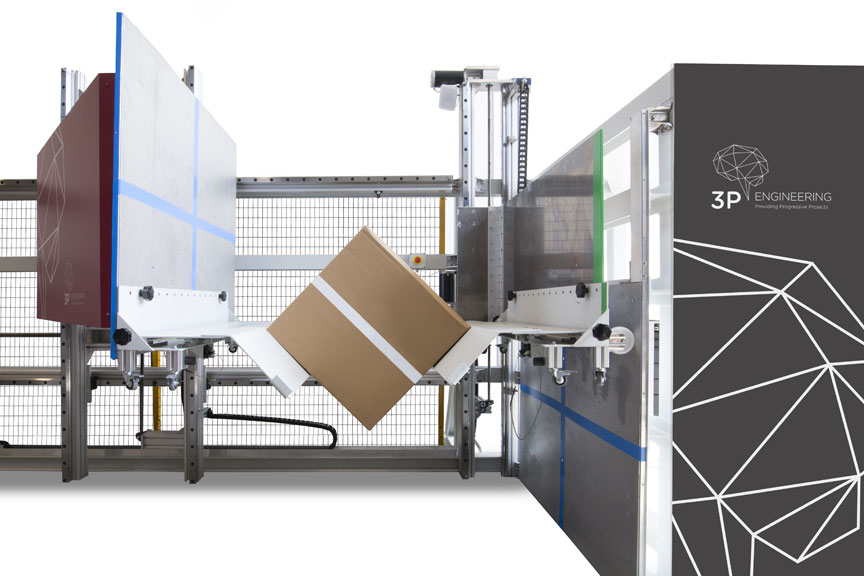

TEST BENCH FOR PACKAGING, CLAMP & DROP
Set of specific equipment to test the packaging, reproducing loading/unloading and transport operations of products. The “Test Benches for Packaging, Clamp & Drop” are the result of the most innovative research of 3P Engineering.
Find out more
CUSTOMIZED TEST BENCHES
3P Engineering Test Benches are completely customizable: R&D department is able to develop Ad Hoc solutions for the most different markets.
Find out more
