Accelerated age testing by means of software controlled on/off cycles, acquisition/recording of relevant data and automatic detection of faults. Testing can be also performed into climatic chambers, ovens or freezers, in order to test components usually subjected to high temperature gradients.

Technical specifications:
• Channels number: 4, 6, 8, 12 (tested samples)
• Single channel power: up to 900 W AC / DC
• Installable pneumatic/electric actuators & sensors: -40 +120 °C
• Programmable automatic acquisition of:
 - Force/desplacement, torque/angle
 - Electrical absorption, winding temperature, start voltage
 - RPM, rotating parts’ stop-time
 - Pressures and temperatures
 - Vibrations / acceleration
• Automatic fault detection software and reliabilty curves processing
• ILAC certified sensors

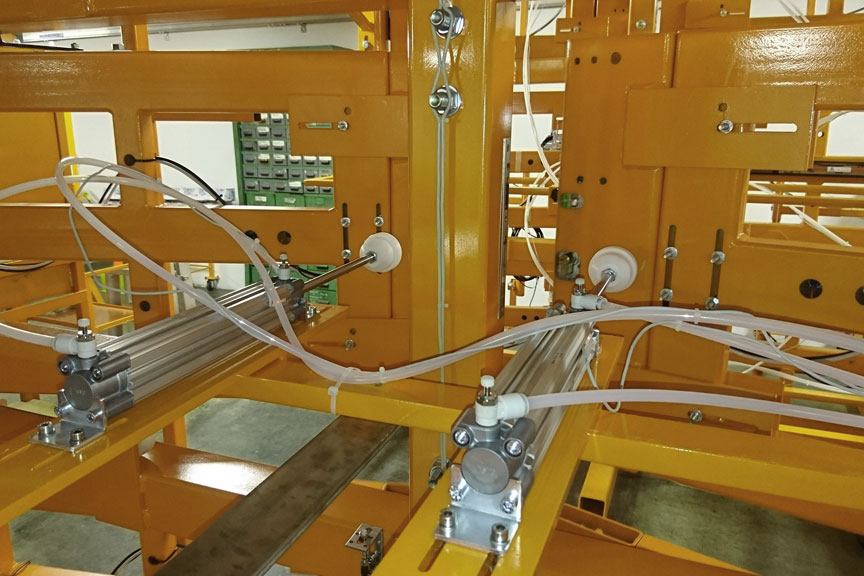

Automatic execution of accelerated work cycles on electromechanical locks. Acquisition of electricaland mechanical quantities with fault diagnosis. Possibility of activation of the number of the cycles,the forces, the voltages and the acceptability thresholds.

Technical specifications:
• Channels number: from 2 to 6, 12 (tested samples)
• Voltage and current electric for each single channel (24 VDC - 5 A)
• Torque / angle acquisition
• Force and time of opening and closing doors
• Motion and limit switches sensors
• Acceptability thresholds for torque of mechanical locks
• Interchangeability between electrical and mechanical locks
• Database of tests carried out
• Automatic fault detection software and data processing
• ILAC certified sensors

Set of specific equipment to test the packaging, reproducing loading/unloading and transport operations of products. The “Test Benches for Packaging, Clamp & Drop” are the result of the most innovative research of 3P Engineering.

3P Engineering Test Benches are completely customizable: R&D department is able to develop Ad Hoc solutions for the most different markets.
