TEST BENCHES FOR HOODS

The best integrated solutions to get the Label of Energy Efficiency (EEL) of range hoods, as prescribed by Directives 2010/30/EU, EU 65/2014 and IEC 61591, completely independently. The “Test Benches for Hoods” are equipped with 3P Labware, a software platform to make easier and faster work: with a user-friendly interface, allows to get a considerable efficiency gain of operator time.

AIRFLOW TEST BENCHES

Performance test benches, with manually or automatically measure: volumetric airflow, pressure, electrical power and RPM’s; with efficiency curves’ interactive monitoring and immediate detection, according to ISO5801,IEC61591, EN 61591, AMCA210.

Technical specifications:
• Air flow: up to 2400 (± 2%) Nm3/h
• Pressure: -250 - +850 (± 1,5) Pa
• Supply: 110-230 V: 50-60 Hz
• Versions: manual, semi-automatic, automatic
• Integrated software for data acquisition andprocessing (WP; BEP; FDE; FDE class; AEC; EEI; EEI class)
• ILAC certified sensors

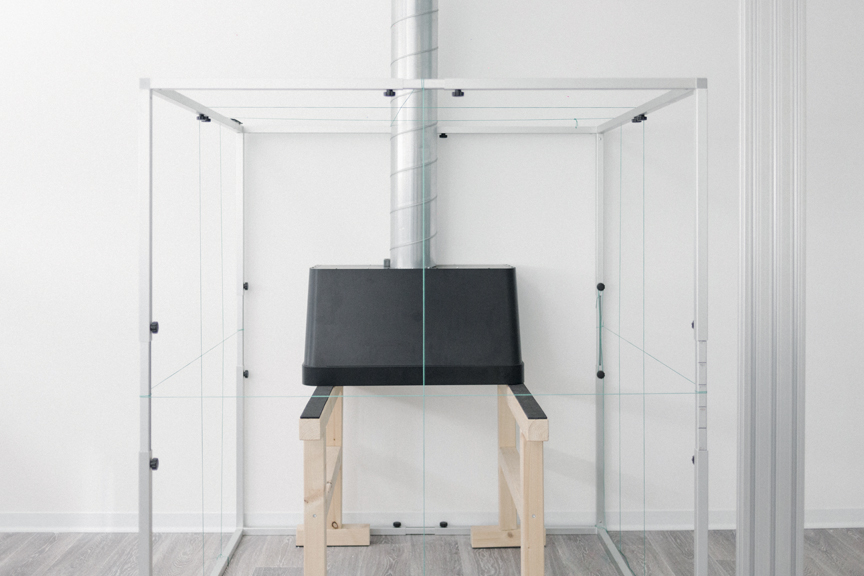

NOISE TEST BENCHES

A complete set and advanced tools for range hoods’ Sound Power level (LwA) determination conformal to IEC 60704-2-13, EN 60704-2-13:
- ISO 9614, intensimetric method
- ISO 3743, ISO 3741 (reverberant chamber)
- ISO3744 (semi-anechoic chamber)

Technical specifications:
• Reverberant, semi-anechoic chambers
• Test chamber volume: 70-200 m3
• Complete phonometric chain for spectrum acquisition in one third octave bands 100 Hz - 10 kHz
• Integrated software for LwA levels acquisition and declaration
• Frame kit, muffler and pipes IEC 60704-2-13, EN 60704-2-13
• Reference source (RSS)
• ILAC certified sensors

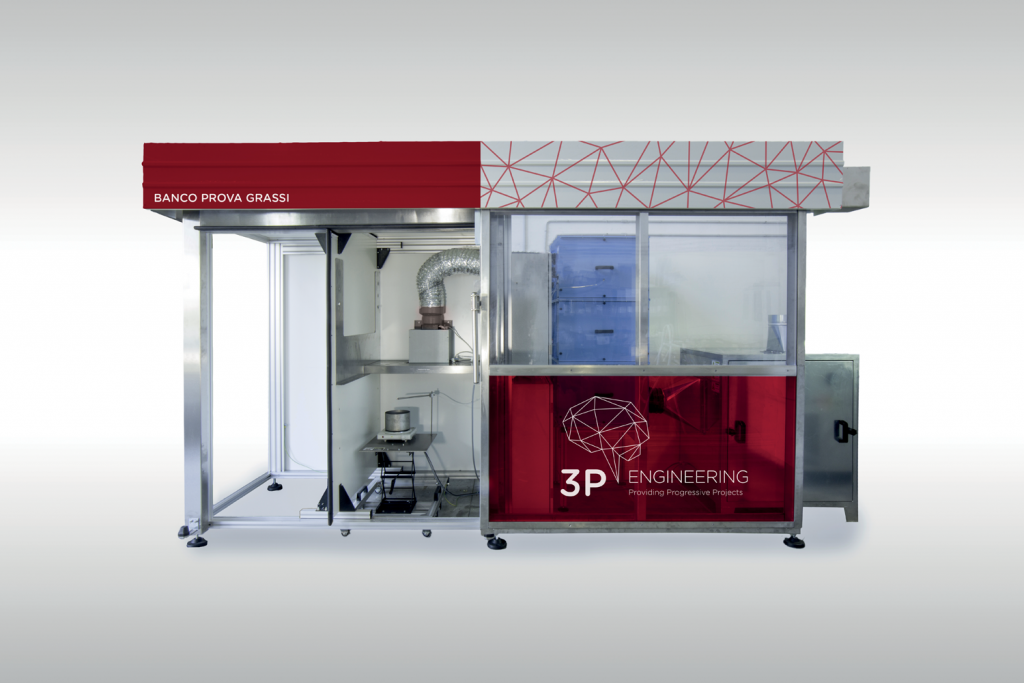

GREASE TEST BENCHES

Grease Filtration Test Benches for range hoods Grease Absorption Factor (GF) measurement, according to IEC 61591, EN 61591.

Technical specifications:
• Wall, island, downdraft range hoods up to 180cm large
• Backpressure: 0 – 250 (± 0.2%) Pa
• Air flow: up to 2400 (± 2.5%) Nm3/h
• Electric hob power: 1500 W
• Oil/water dosage: automatic
• Characterization kit for isolated filters withpressure losses measurement
• ILAC certified sensors

MULTIFUNCTIONAL TEST CHAMBER
(ODOR, LIGHT, CAPTURE)

Multifunctional chamber according to IEC 61591, EN 61591 for Odor Reduction Factor (ORF) and Hob light effectiveness (lux test) measurementon range hoods.

Technical specifications:
• Wall, island, downdraft range hoods up to 150cm large installation
• Capture efficiency through tracing gases
• Thermal plume visualization through lame lasers
• Olfactory evaluations (Smell Panel)
• ILAC certified sensors
