TEST BENCHES FOR PACKAGING, CLAMP & DROP
Set of specific equipment to test the packaging, reproducing loading/unloading and transport operations of products. The “Test Benches for Packaging, Clamp & Drop” are the result of the most innovative research of 3P Engineering. They are also equipped with 3P Labware, a software platform to make your work quick and easy: thanks to the user-friendly interface, allows you to get a significant gain in operator time efficiency.

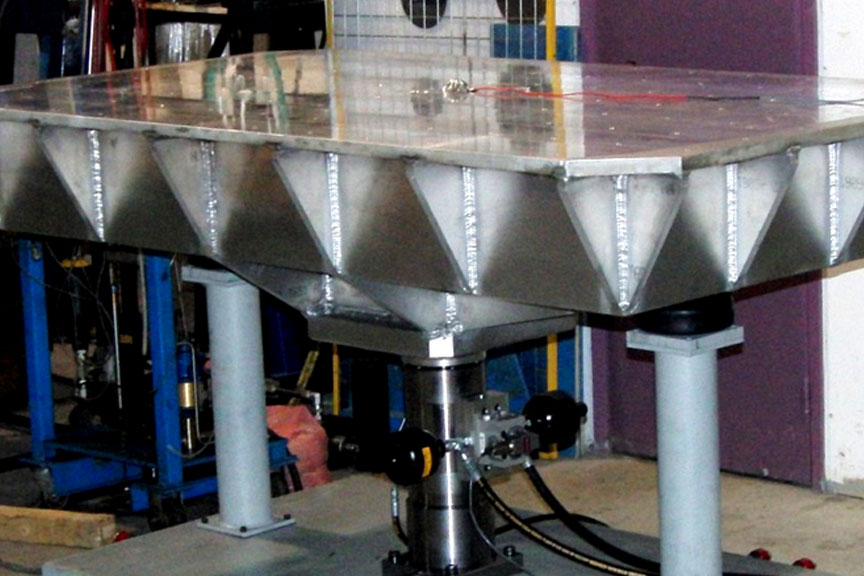

SHAKER TABLE
Shaker able to simulate the transport of packaged goods. The system allows to test the packaging on different types of transport methods such as road, rail and ship, according to ASTM D4728-06, SRETS and BSH.
Technical specifications:
• Vibrating floor size: 2000x1100 mm
• Payload: 200 kgSeismic mass: 2000 kg
• Displacement or acceleration control loop
• LVDT Vertical Stroke: 100 (± 0,01) mm
• Accelerometer: 2 (± 2%) G
• Frequency range: 1 – 20 Hz
• Integrated software for acquisition and elaboration.
• ILAC certified sensors
Contact usTechnical specifications:
• Vibrating floor size: 2000x1100 mm
• Payload: 200 kgSeismic mass: 2000 kg
• Displacement or acceleration control loop
• LVDT Vertical Stroke: 100 (± 0,01) mm
• Accelerometer: 2 (± 2%) G
• Frequency range: 1 – 20 Hz
• Integrated software for acquisition and elaboration.
• ILAC certified sensors
INTEGRATED CLAMP & DROP TEST BENCH
Integrated test bench for side or vertical clamp and drop tests according to ASTM D6055, EN 22248.A leading-edge solution to reduce the test validation time and costs for transport and packaging, testing the resistance of packaging.
Technical specifications:
• Packaging max dimensions: 1600 x 1200 x 1000 mm
• Strenght/Clamp control
• Payload: 1,20 kN
• Dropping max height: 1500 mm
• Compressure strenght: 10000 kgf
• ILAC certified sensors
Contact usTechnical specifications:
• Packaging max dimensions: 1600 x 1200 x 1000 mm
• Strenght/Clamp control
• Payload: 1,20 kN
• Dropping max height: 1500 mm
• Compressure strenght: 10000 kgf
• ILAC certified sensors
YOU MAY ALSO BE INTERESTED IN
CUSTOMIZED TEST BENCHES
3P Engineering Test Benches are completely customizable: R&D department is able to develop Ad Hoc solutions for the most different markets.
